Product Construction

• Describes the design look or theme of the fitting
  Product Style: Modern
• Material used to make the main structure of the fitting
  Body Material: .
• The outer texture or coating applied to the fitting's body
  Body Finish: .
• The decorative or visible colour of the body
  Body Vanity Colour: .
• Material used to make the light shade or cover
  Shade Material: .
• The visible or decorative colour of the shade
  Shade Vanity Colour: .
• Explains where and how the fitting is designed to be installed
  Mounting Type: Wall Mounted
• The full size of the fitting once installed

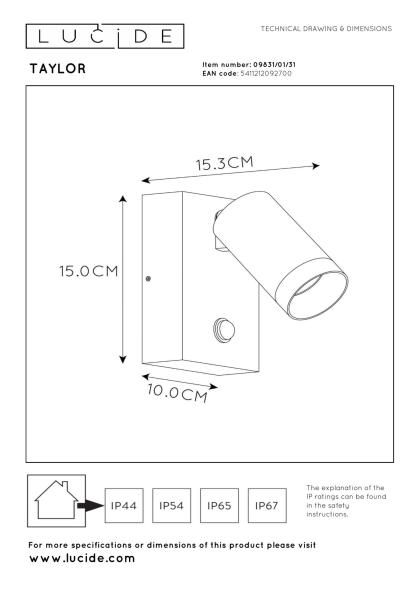

  Overall Dimensions (W x D x H) (mm): 153 x 100 x 150
• Size of the part that attaches to the wall or ceiling
  Mounting Base Dimension - (W x D x H) (mm): .
• Can the fitting be moved/adjusted
  Fitting is Slewable / Adjustable: Yes
• How the fitting can be moved/adjusted
  Adjustable Dimensions / Drop: Rotatable & Tiltable (360 Degrees)
• Weight of Lamp: 0.81 kg

Technical Details

• The power source required for the fitting
  Type of Supply: 230V - Mains Voltage
• The type of bulb or lamp the fitting is designed to use
  Light Source Type: GU10
• Is the fitting supplied with a bulb
  Supplied with a Bulb: No
• How many bulbs this fitting needs to be complete
  Number of Bulbs Required: 1 Bulb
• Is the light colour of the fitting adjustable
  Light Output Colour Adjustable: No
• Is the fitting dimmable
  Dimmable: Yes
• How to dim the fitting
  Dimmable Type: Mains Dimmable
• IP (Ingress Protection) rating measures a light fixture's resistance to dust and water.
  IP Rating: IP54 Rated
• How the fitting is electrically insulated and whether it needs an earth
  Class of Fitting: 1 - Earth Required
• The specific plug type included with the product
  Type of Plug Fitted: Without Plug
• Does the product have a built in sensor
  Built in Sensor: Yes
• What type of sensor is built into the fitting
  Type of Sensor: With Motion Sensor & Day/Night Sensor
• Does the fitting have an integral switch
  Integral Switch: No

Product Details

• SKU: LEO-09831/01/30
• Product series or collection this item belongs to
  Family : TAYLOR
• Is the product made to order
  Product Made to Order: No
• Is this a special order product
  Special Order Product: Yes
• Where is the product located before order
  Product Location: EU
• Expected lead time for delivery
  Lead Time for Delivery: 10-14 Days
• Manufacturers stated warranty period
  Warranty: 2 Years
• Number of packages the product is shipped in
  Number Of Packages: 1
• Dimensions of a packaged product
  Packaging 1 Dimensions H x W x D (mm): 145 x 195 x 105
• Weight of a packaged product
  Package 1 Weight - KG: 0.91
• Weight of Lamp: 0.81 kg
• SKU: LEO-09831/01/30

• Certification that the product complies with relevant safety, health, and environmental regulations
  Declaration of Conformity: https://media.lucide.be/declaration/09831-01-30 CE declaration.pdf
• Manufacturer provided installation instructions
  Installation instructions: https://www.lucide.com/ftp/manual/09831-01-30_manual.pdf
• Manufacturer provided dimension drawings

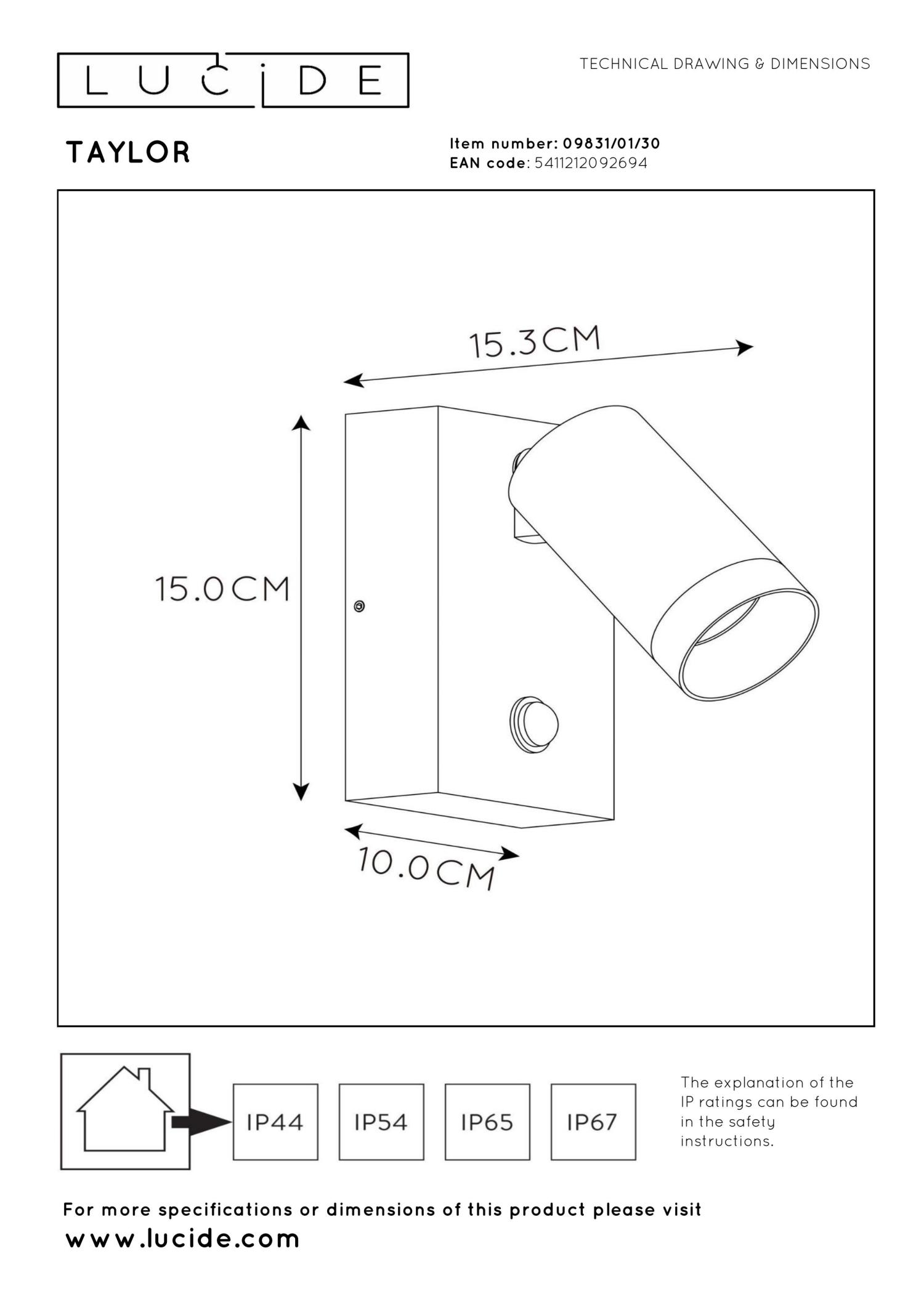

  Product Drawing: https://media.lucide.be/picture_library/low-res/technical_drawing/09831-01-30 technical drawing.jpg
